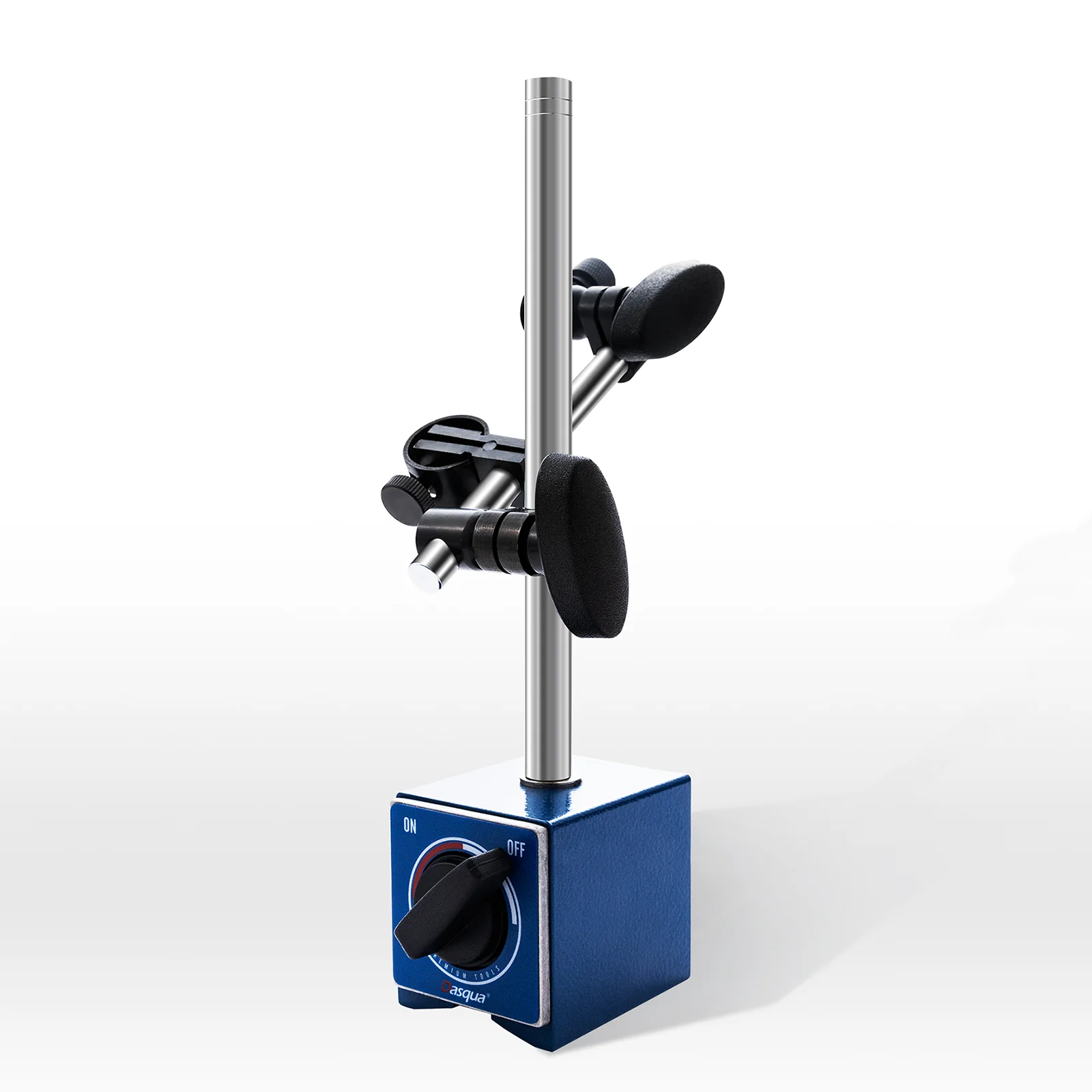

MAGNETIC BASE WITH FINE ADJUSTMENT
The Magnetic Base with Fine Adjustment is designed for accurate indicator positioning in machining and inspection tasks. It combines a powerful magnetic base with a super strong mechanical universal arm and fine adjustment control for exact alignment.
Manufactured using CNC machining for high precision and stability, this model features hardened wear parts and a durable internal structure made of bearing steel. The result is long service life, firm positioning, and reliable repeatability in any setup.
Features
• Designed with two clamping holes suitable for metric and inch dial indicators
• Dovetail groove for test indicators for added versatility
• Ergonomic tightening knob for comfortable and firm grip

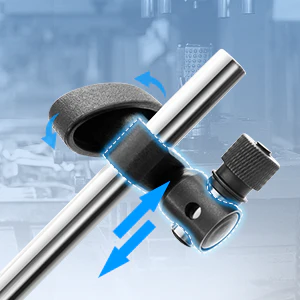

• Flexible and super strong rotary joints for smooth adjustment
• Super strong mechanical universal arm with powerful locking force
• New type locking mechanism for firm and stable positioning

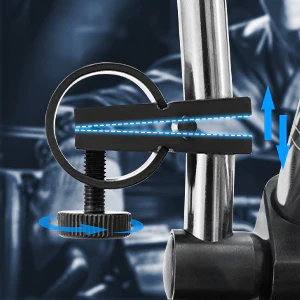

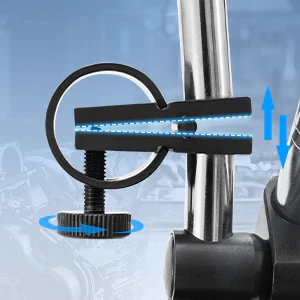

• Fine adjustment device heat treated for stability and durability
• Solid structure with electroplated surfaces and precision ground end faces
• 150 degree V grooved base for mounting on cylindrical or flat surfaces
• Ferrite permanent magnet with magnetic force greater than calibration value
• On and off magnetic switch for easy repositioning
• Wear parts made of hardened high grade steel over 58 HRC
• Inner structure made of bearing steel for enhanced wear resistance
Specifications

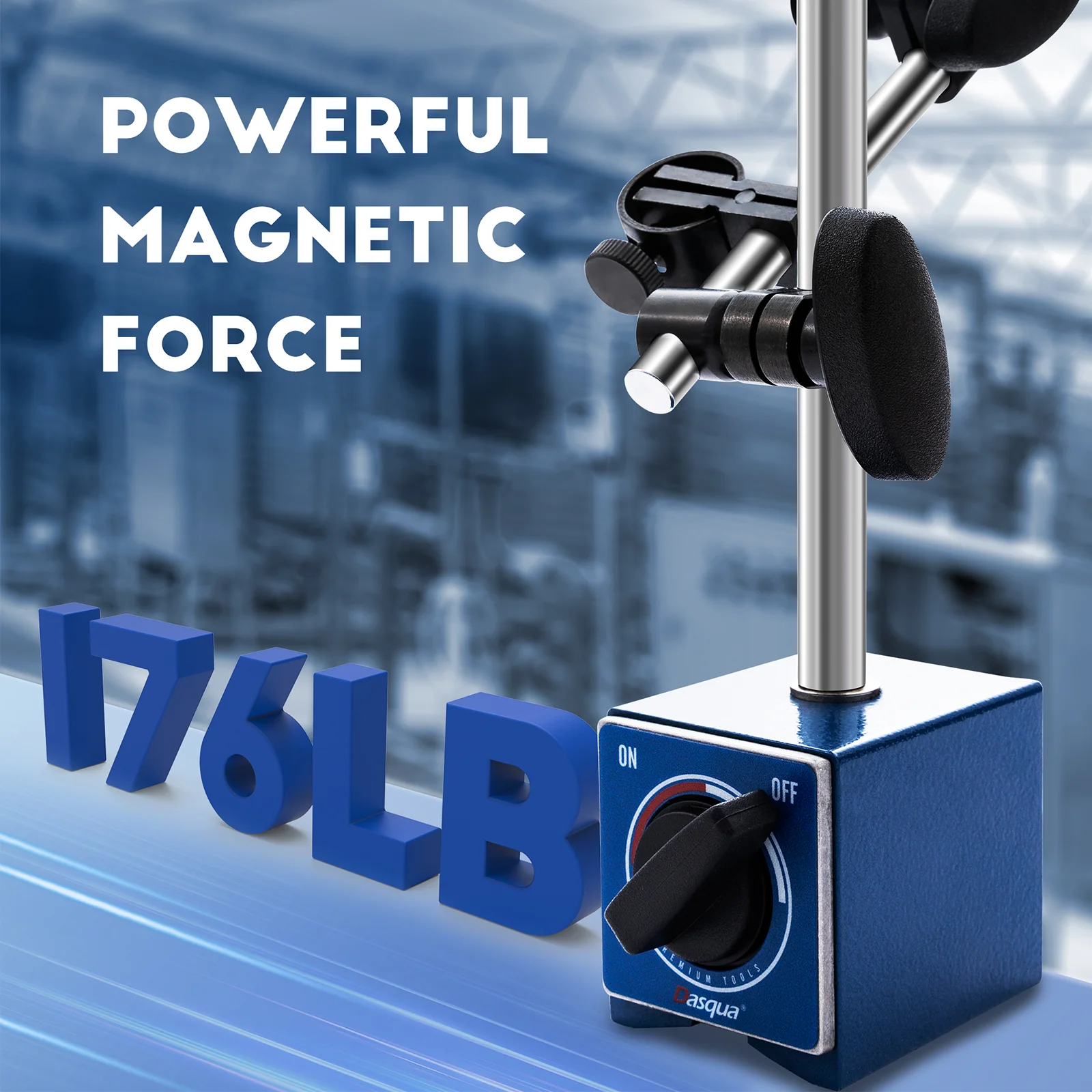

• Holding power. 60 kg
• Base dimensions. 60 by 50 by 55 mm
• Main pole. 12 mm diameter by 176 mm length
• Sub pole. 10 mm diameter by 150 mm length
• Diameter of clamp hole. 4 mm, 8 mm, and 3 by 8 inch
• Weight. 1.5 kg
• Measurement unit. Millimeter
Comes With
• Magnetic base with integrated on and off switch
• Mechanical universal arm assembly
• Fine adjustment mechanism
• Dual clamping holes and dovetail mount for indicators
