ER32 COLLETS WITH R8 COLLET CHUCK

The Accusize ER32 Collets with R8 Collet Chuck set provides a comprehensive solution for precision machining. This 12-piece set is crafted to ANSI standards, including an R8 Bridgeport shank and a fitted box for easy organization and portability. With collets ranging from 3/32" to 3/4", this kit is ideal for a wide variety of milling and drilling applications. Its unique self-releasing system ensures smooth operation without sticking.

Key Features

• Complete Set: Includes 12 ER32 collets with nominal sizes from 3/32" to 3/4", an R8 chuck holder, non-slip spanner wrench, and a fitted storage case.
• High Precision: Offers an accuracy of 0.0004", ensuring reliable, precise clamping.
• Durable Construction: ANSI standard construction for lasting performance in demanding applications.
• Self-Releasing Mechanism: Prevents collets from sticking, allowing smooth operation.
• Optimal Clamping Power: Flute holding capability ensures high concentricity and secure grip on workpieces.

Specifications

• Collet Series: ER32
• Range: R8 x 4 inches
• Included Collet Sizes: 3/32", 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4"
• Accuracy: 0.0004"
• ANSI Standard Compliant: Yes

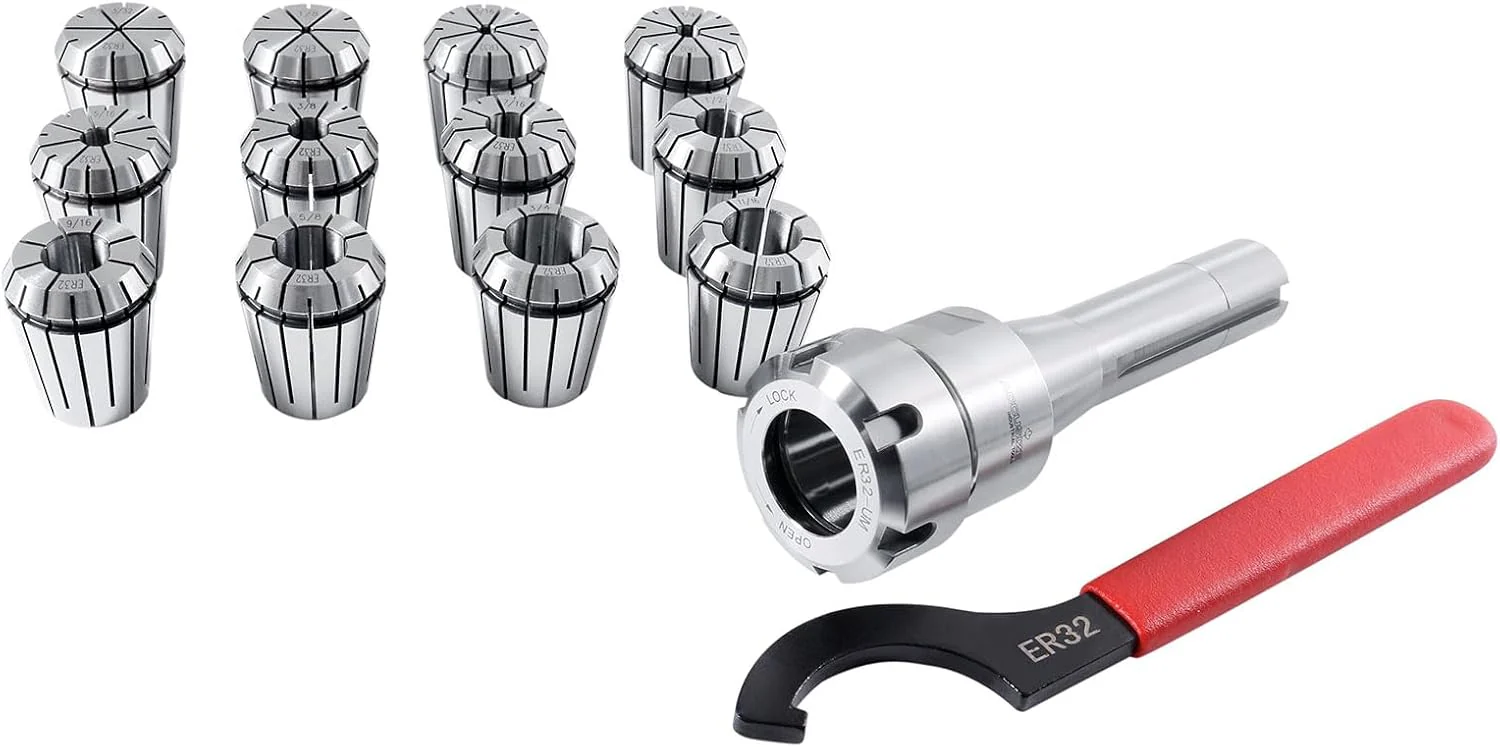

Comes With

• 12 ER32 collets of various sizes for diverse applications
• R8 collet chuck holder for use in compatible machines
• Non-slip spanner wrench for easy tightening and release
• Durable fitted box for organized storage and portability
