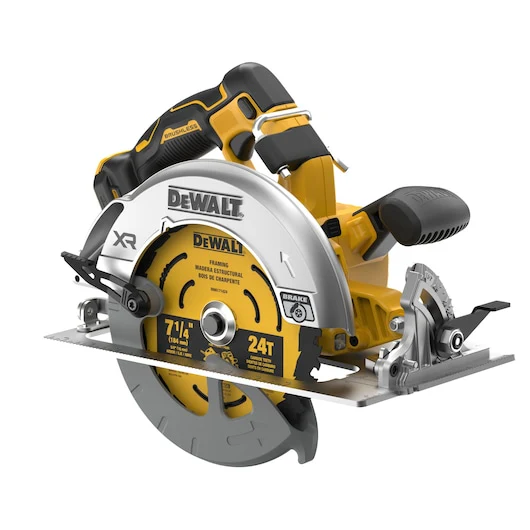

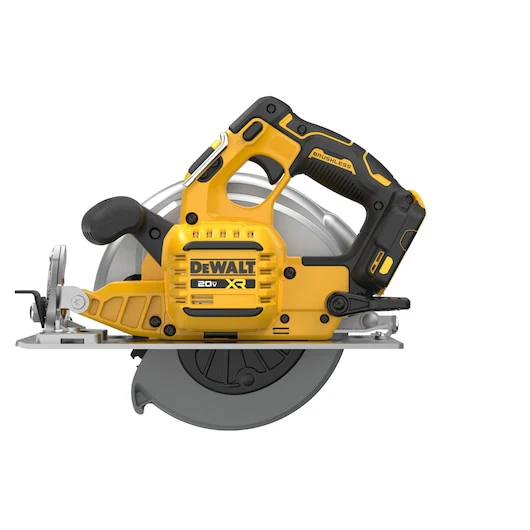

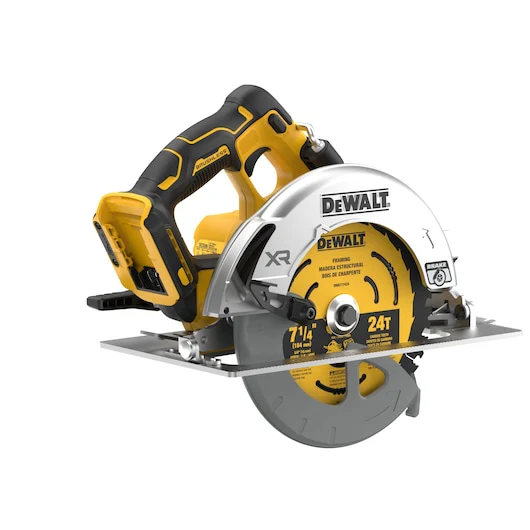

20V MAX XR 7 1/4IN CIRCULAR SAW (BARE)

Designed for professional contractors and serious DIYers, the 20V MAX XR® Brushless Cordless 7-1/4 in. Circular Saw* delivers unmatched cutting power and runtime in a compact, easy-to-handle package. This is DEWALT’s most powerful circular saw in the 20V MAX* lineup†, built for speed, accuracy, and convenience on the toughest jobsites. Equipped with a high-efficiency brushless motor, the saw achieves up to 5,500 RPM and delivers up to 1,700 Max Watts Out (MWO) for aggressive cutting performance across a wide range of materials.

Its blade-right configuration and ergonomic top-handle design enhance visibility and control, while the built-in electronic brake, LED light, and dust management options bring precision and safety to every cut.

Key Features

• Brushless Motor: Delivers up to 1,700 MWO and 5,500 RPM (no-load) for peak cutting performance and efficiency.

• Extended Runtime: Achieves up to 368 cuts per charge** with a fully charged 20V MAX* battery (sold separately).

• High Cutting Capacity: Cuts up to 2-9/16 in. at 90° and 2 in. at 45°, handling a variety of lumber and sheet materials.

• Bevel Capacity: Bevels up to 57° with positive stops at 22.5° and 45° for versatile angled cuts.

• Electronic Brake: Rapidly stops the blade after trigger release, reducing overspin and enhancing safety.

• Onboard LED Light: Illuminates the cutting area for greater visibility in low-light environments.

• Rafter Hook: Built-in storage hook allows for quick hanging between tasks.

• Dust Management: Compatible with DEWALT® AirLock and standard 35mm dust extractors to help control debris (dust port sold separately).

• TOOL CONNECT™ CHIP READY™: Supports asset tracking and tool management via the Site Manager app (chip sold separately).

• Blade-Right Configuration: Improves cut-line visibility and accuracy for right-handed users.

Specifications

• Power Source: 20V MAX* (Battery sold separately)

• Motor Type: Brushless

• Blade Size: 7-1/4 in.

• No-Load Speed: Up to 5,500 RPM

• Max Watts Out (MWO): 1,700

• Max Depth of Cut at 90°: 2-9/16 in.

• Max Depth of Cut at 45°: 2 in.

• Bevel Capacity: 0°–57°, with stops at 22.5° and 45°

• Tool Weight: Varies depending on battery (tool only)

Comes With

• (1) 20V MAX* XR® Brushless Cordless 7-1/4 in. Circular Saw
  (Battery, charger, blade, and accessories sold separately)
