12" METAL WOOD BANDSAW CRAFTEX CX SERIES CX115

CX115

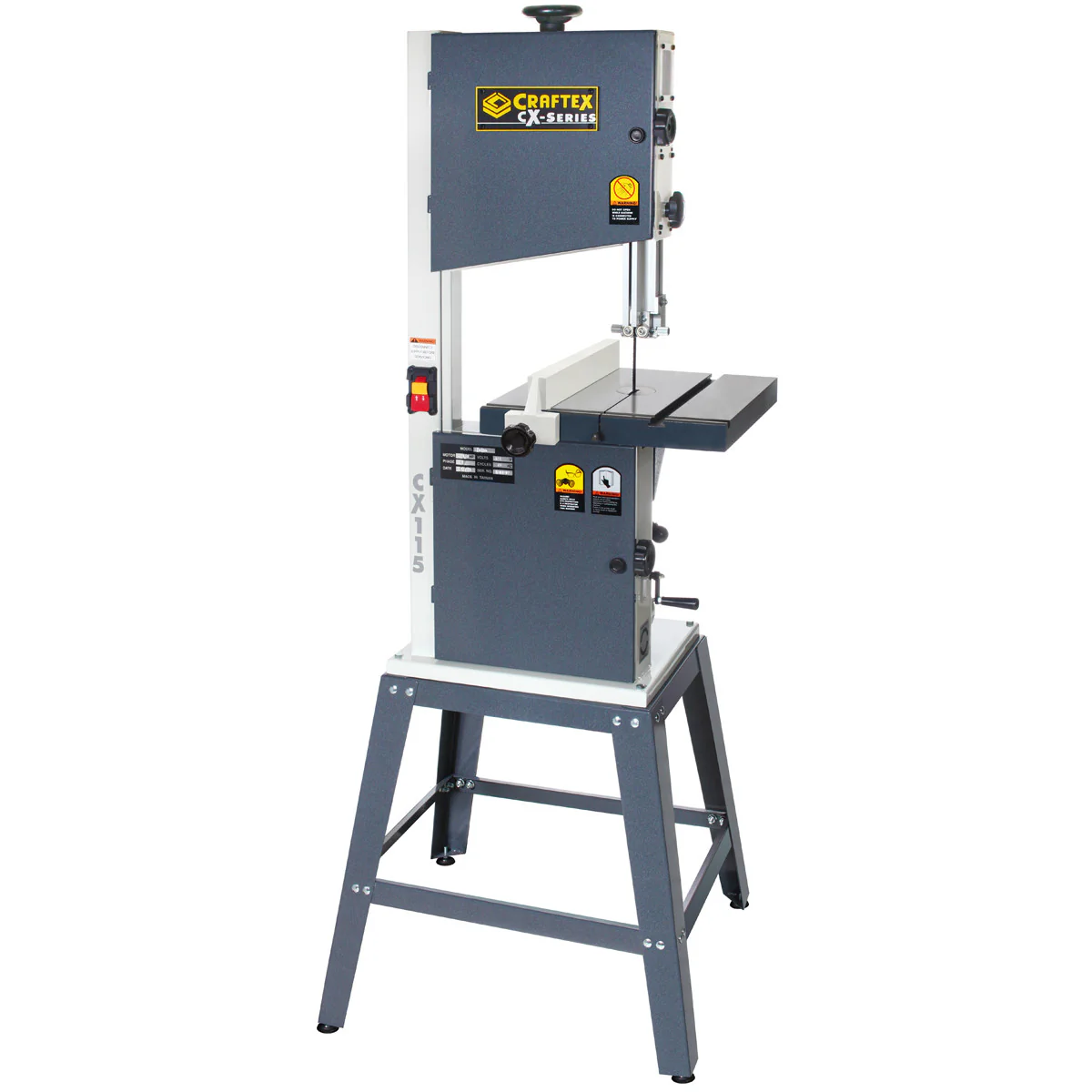

12" Wood and Metal Cutting Band Saw - Craftex CX-Series

This 12" band saw is designed to cut ferrous and non-ferrous metals and also hard and soft woods. The CX115 features a solid one piece welded steel body construction which allows the machine to hold much higher accuracy tolerances and the solid cast iron precision machined table provides a solid work surface ensuring durability.

The 3/4 HP motor powers through the 7" cutting capacity and the 12" throat capacity is plenty for most applications. The table tilts 45° to the right and the precision machined rip fence is for performing many different operations and the convenient tensioning and tracking mechanism makes blade changing quick and easy.

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

FEATURES
Solid One Piece Welded Steel Body Construction

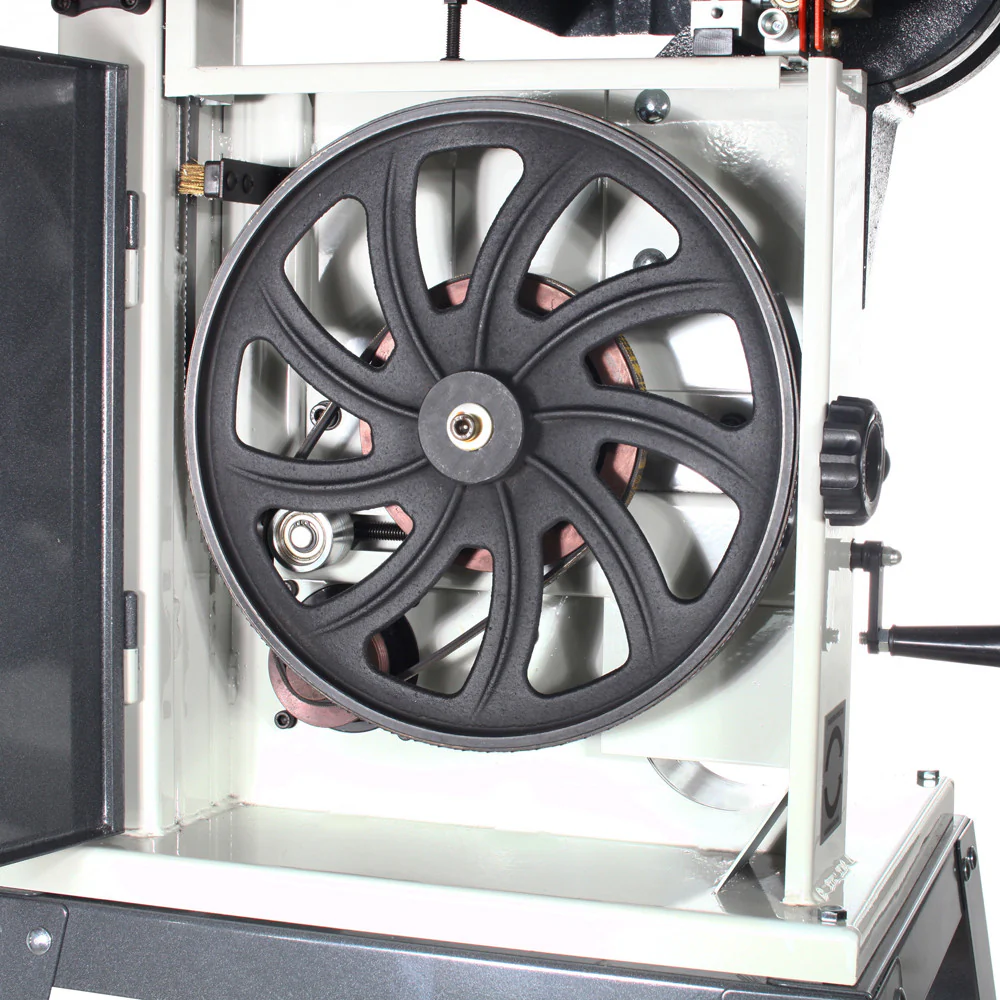

Precision Balanced Cast Iron Wheels
Blade Tracking Window
ON/OFF Switch with Removable Key

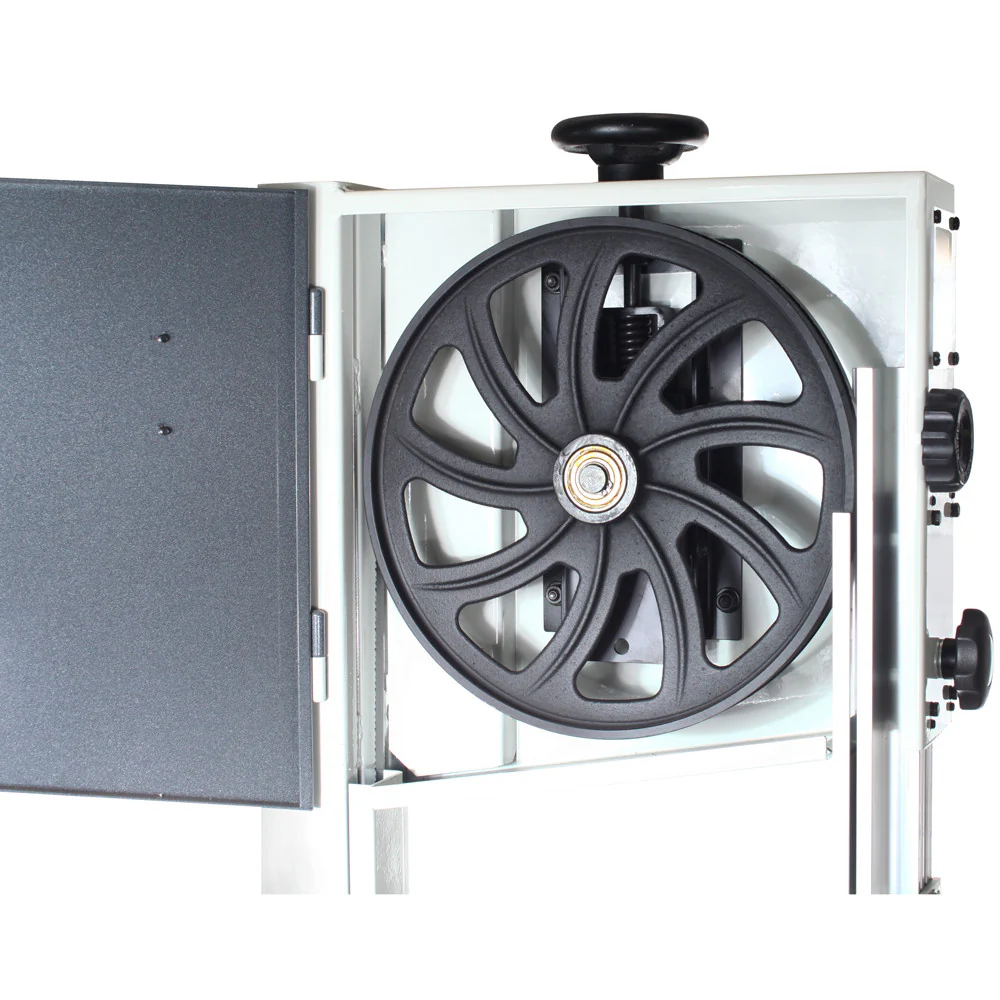

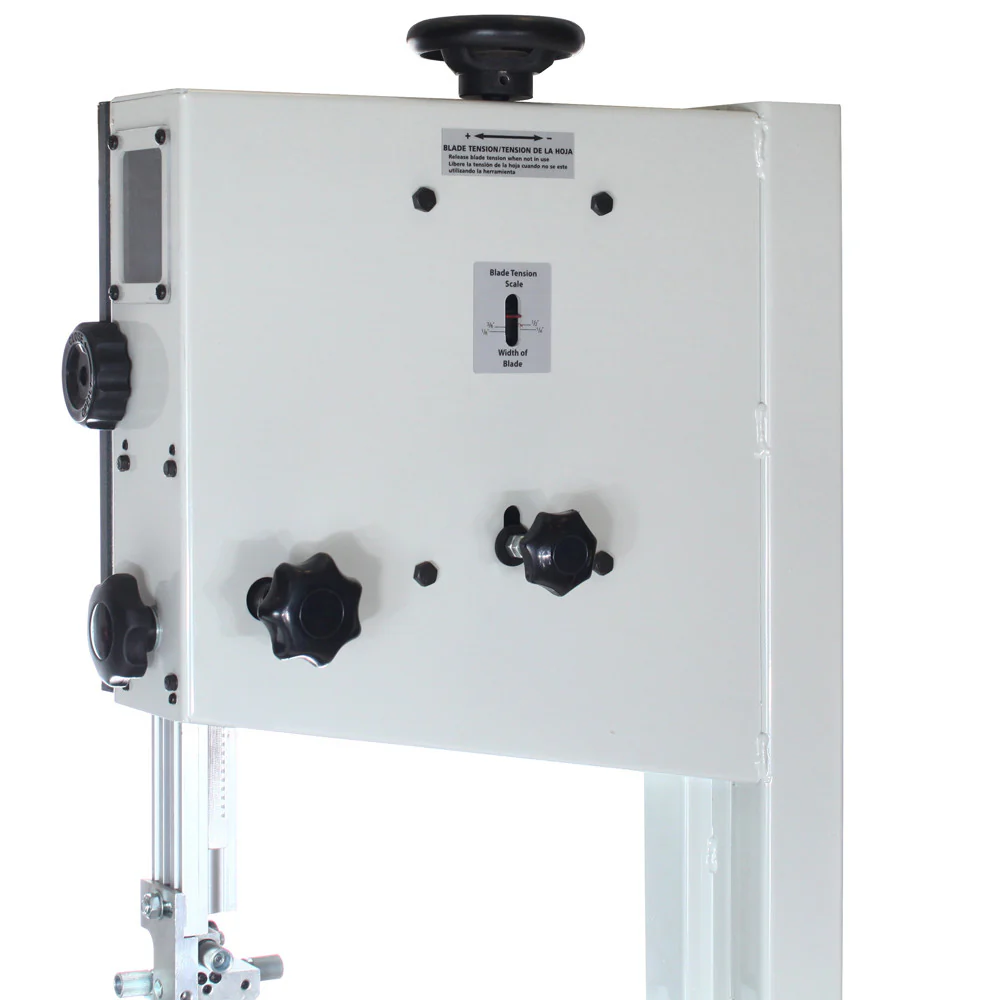

Convenient Blade Tensioning Hand Wheel
Precision machine Rip Fence Tilting Table
Includes a Precision Machined Rip Fence

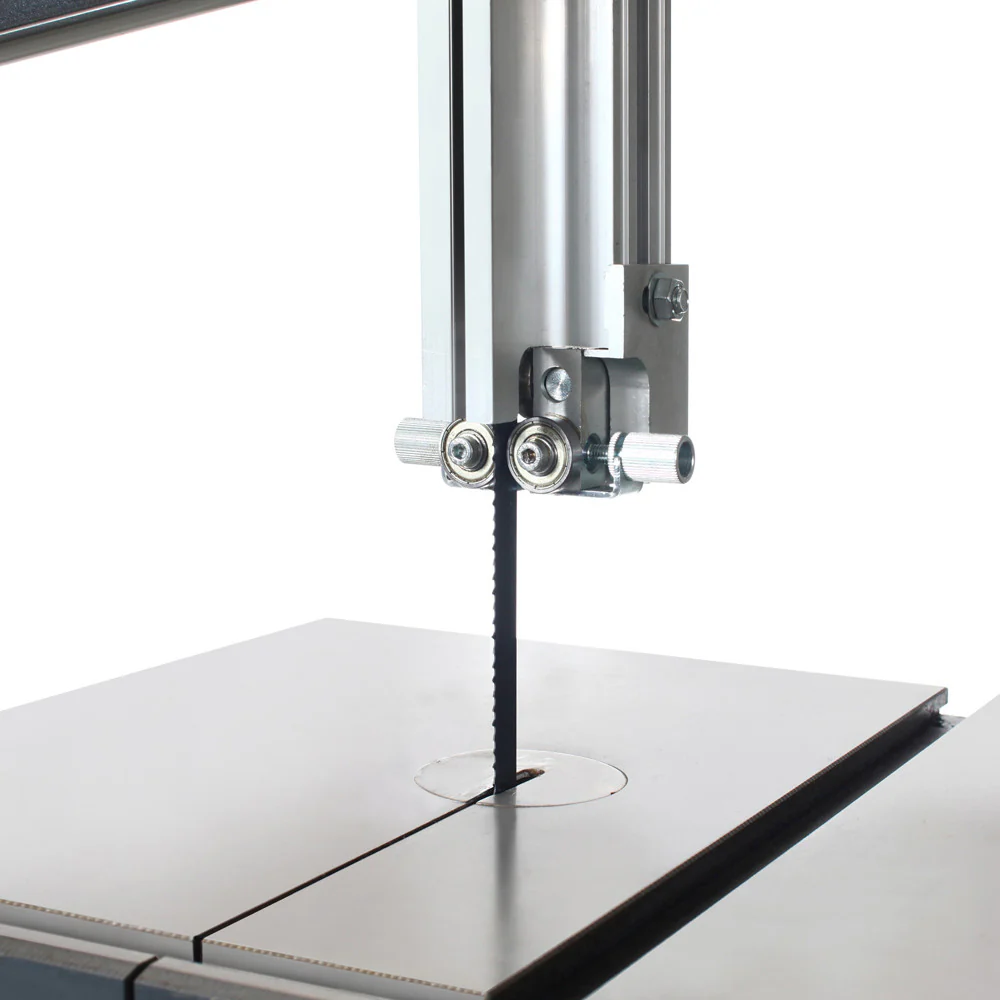

Upper and Lower Blade Guides
Powder Coated Two Tone paint
3 Year Warranty


SPECIFICATIONS

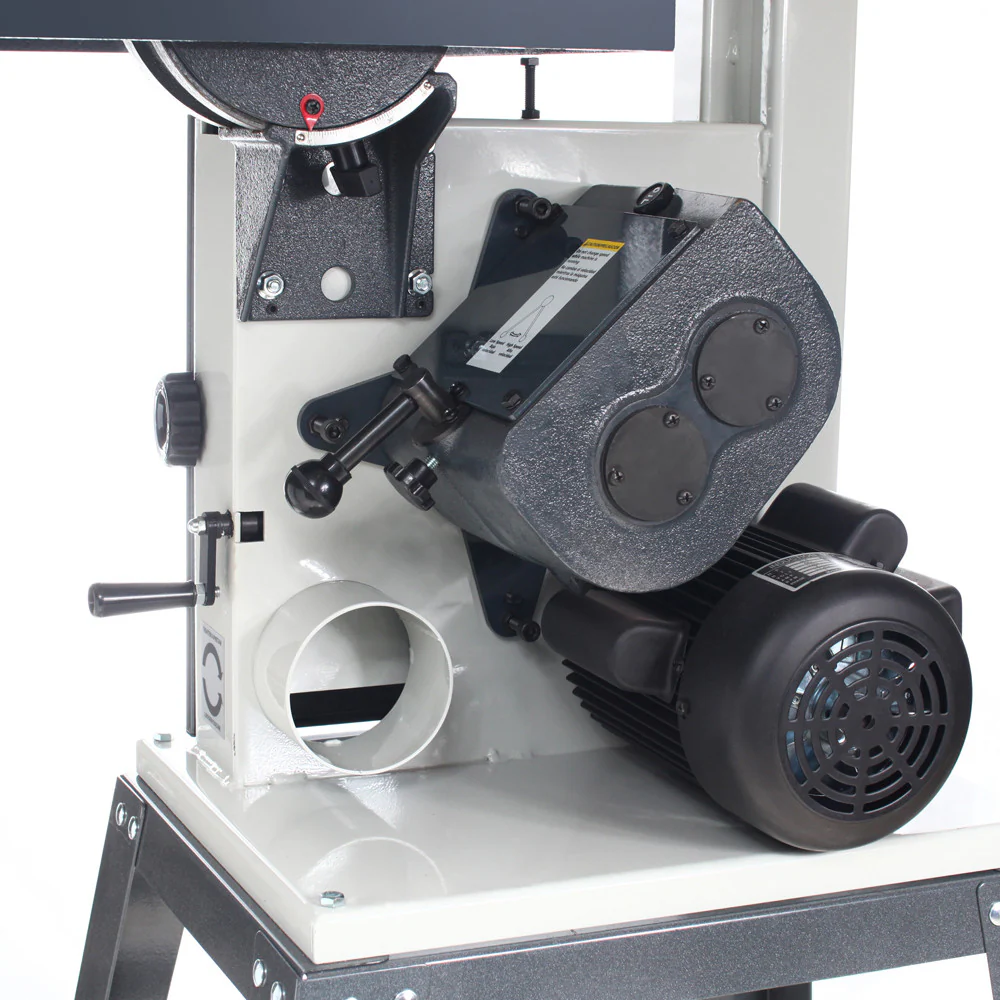

Motor: 3/4-HP, 110-V, Single Phase
Switch: ON/OFF Switch
4 Speeds: 80, 180, 1300 & 3,000 FPM
Cast Iron Table Size: 15" x 15"
Table Tilt: 0° Left & 45° Right
Wheel Diameter: 12-3/8"
Blade Width: 1/8" to 1/2"
Blade Length: 89-3/4"
Maximum Depth of Cut: 7"
Maximum Depth of Cut at 45°: 4"
Depth of Throat: 12"
Dust Collection Port: 4"
Bearings: Sealed and Permanently Lubricated
Overall Dimension: 31" Width x 23" Length x 65" Height
Approximate Weight: 189 lbs
