This 8pc bit set is for the most demanding sign making, lettering and engraving. Designed for creating signs and other CNC projects in a variety of materials. Each router bit is manufactured from Craftex Blue Tornado exclusive grade carbide according to stringent quality standards.

SPECIFICATIONS:

Bit 1 (Ball Nose)

Cutting Diameter: 1/4"
Radius: 1/8”
Cutting Length: 1/2"
Overall Length: 2-1/2"
Shank Diameter: 1/4"

Bit 2 (V-Groove)

Cutting Diameter: 3/16"
Cutting Length: 1/2"
Angle: 7.5°
Overall Length: 1-7/8"
Shank Diameter: 1/4"

Bit 3 (O-Flute Up-Cut Spiral)

Cutting Diameter: 1/8"
Cutting Length: 1/2"
Overall Length: 2"
Shank Diameter: 1/4"

Bit 4 (O-Flute Up-Cut Spiral)

Cutting Diameter: 1/4"
Cutting Length: 7/8"
Overall Length: 2-1/2"
Shank Diameter: 1/4"

Bit 5 (Up-Cut Spiral)

Cutting Diameter: 3/16"
Cutting Length: 1/2"
Overall Length: 2"
Shank Diameter: 1/4"

Bit 6 (O-Flute)

Cutting Diameter: 1/8"
Cutting Length: 1/2"
Overall Length: 2"
Shank Diameter: 1/4"

Bit 7 (V-Groove)

Cutting Diameter: 3/8"
Cutting Length: 1/2"
Angle: 60°
Overall Length: 1-7/8"
Shank Diameter: 1/4"

Bit 8 (V-Groove)

Cutting Diameter: 1/2"
Cutting Length: 3/8"
Overall Length: 1-3/4"
Shank Diameter: 1/4"

Craftex Blue Tornado bits are CNC machined to have perfect balance and leave a smooth finish. All bits are manufactured from 4140 & 5140 steel and are put through a special heat treatment process to ensure proper hardness and tensile strength to prevent bending or breaking. Tungsten micro-grain C3 carbide gives the cutter long-lasting strength that can be sharpened many times over.

Craftex Blue Tornado bits have an anti-kickback design along with a non-stick coating for easy pitch removal. Finished with an automotive semi-transparent finish, to give a long-lasting shine. All Craftex Blue Tornado router bits and shaper cutters are backed by a limited, life-time warranty.

cnc-sets

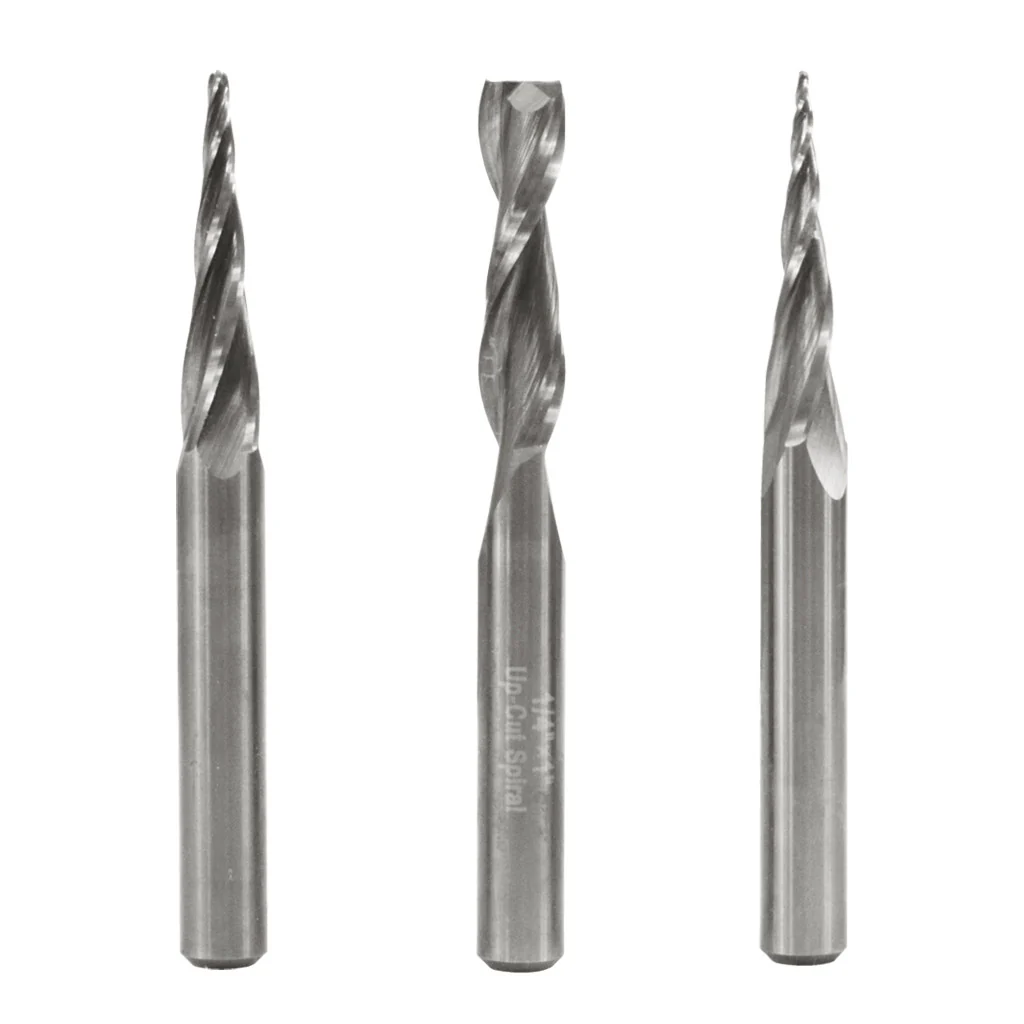

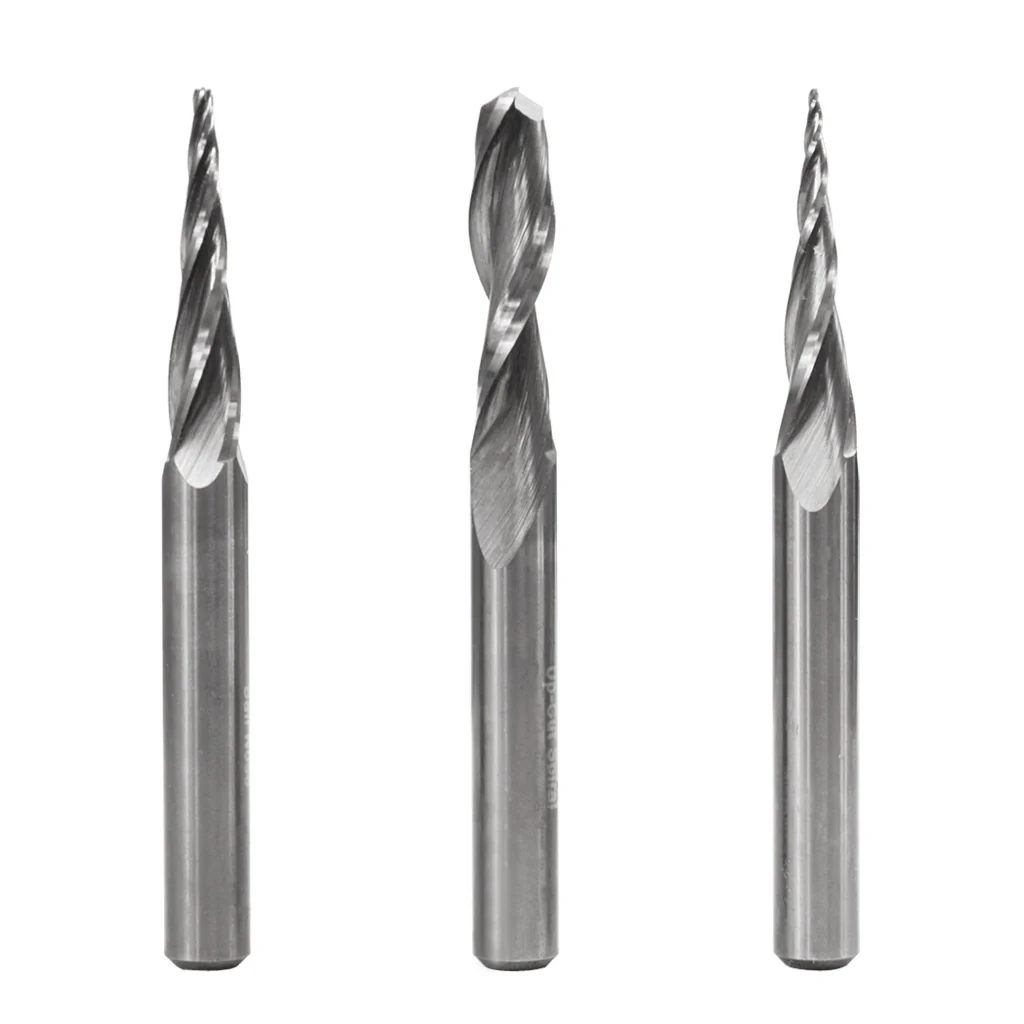

3PC FINE DETAIL CNC ROUTER BIT SET 1/4"S

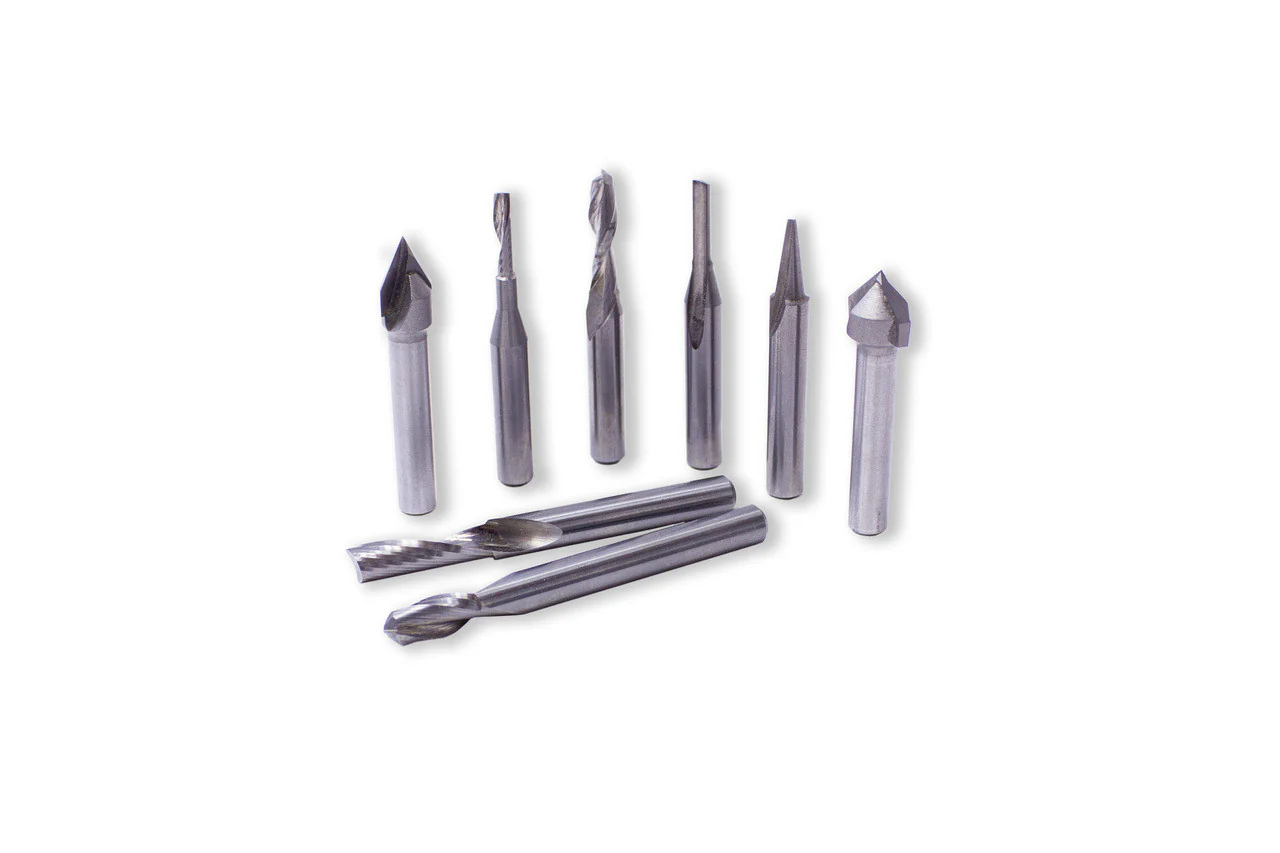

8PC GENERAL PURPOSE CNC ROUTER BIT SET 1

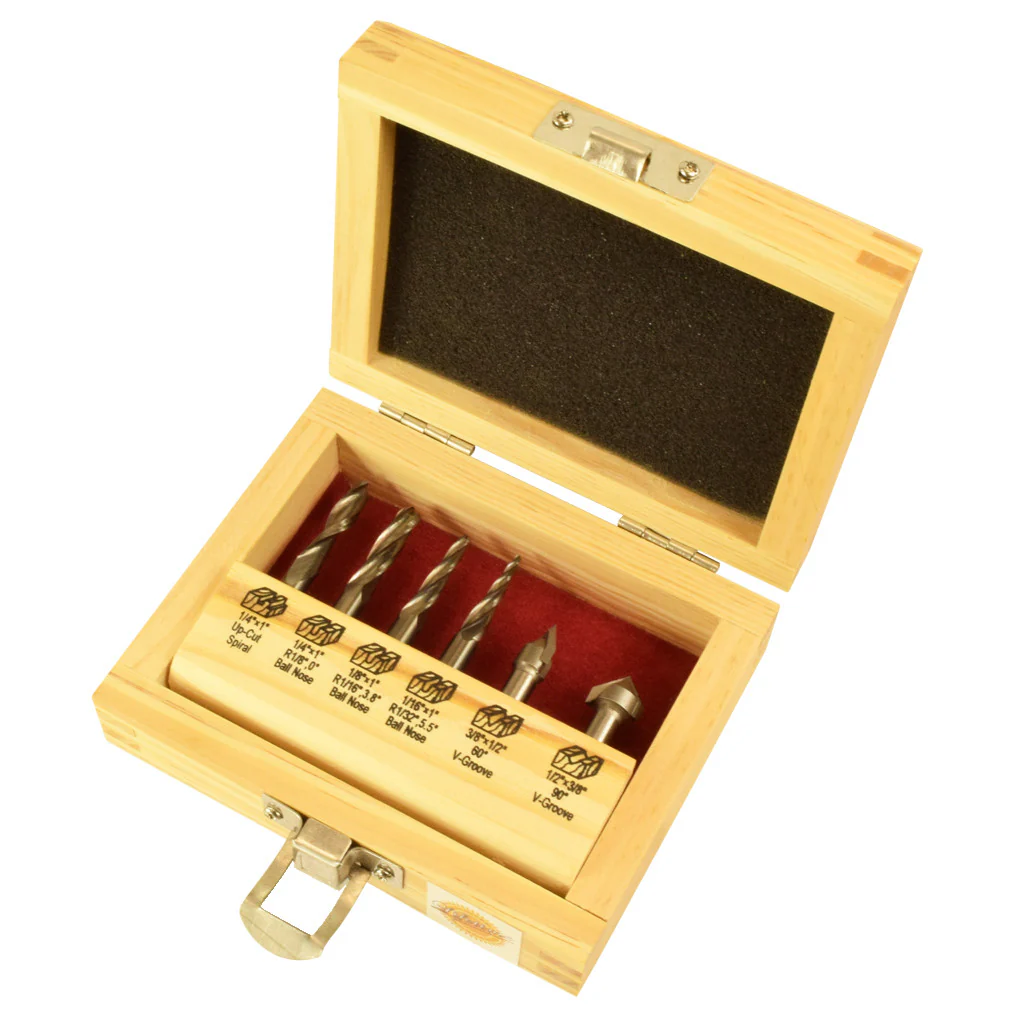

6PC CNC STARTER ROUTER BIT SET 1/4"SHANK
