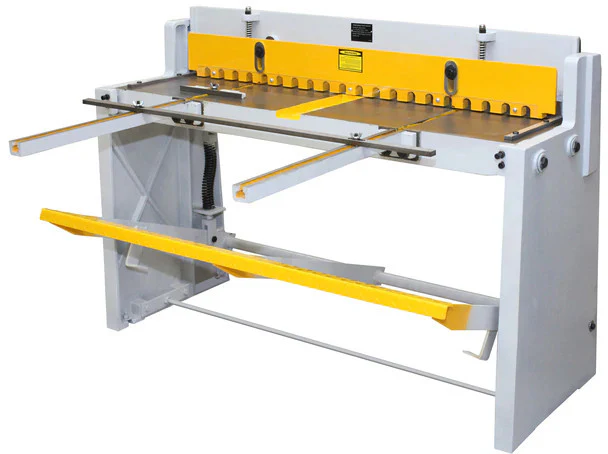

52" Foot Shear, 16 Gauge - Craftex CX-Series

The new and improved CX817N foot shear features an extended foot pedal resulting in increased mechanical force delivered with less effort required by the operator. This 52" foot shear is designed to shear through 16-gauge mild steel with precision and ease. Features of this shear are solid cast iron frame, spring loaded safety guards and hold downs, precision ground blade and spring balanced foot control, this foot shear is a great addition to any shop where sheet metal cutting is required.

Like all CX-Series machines, this unit features powder coated paint and a full 3-year warranty.

FEATURES

52" shearing capacity
Gauge: 16-gauge mild steel up to 26" wide, or 18-gauge mild steel up to 52" wide.
Precision ground blade
Solid cast iron frame
Cast iron hold down clamps
Spring balanced foot control
Front stops and micro adjustable rear stop

SPECIFICATIONS

Capacity: 52"
Rear fence on 35" rails
Front fence on 30" rails
Carton Size: 31" x 46" x 65"
Weight: 521 Kg
