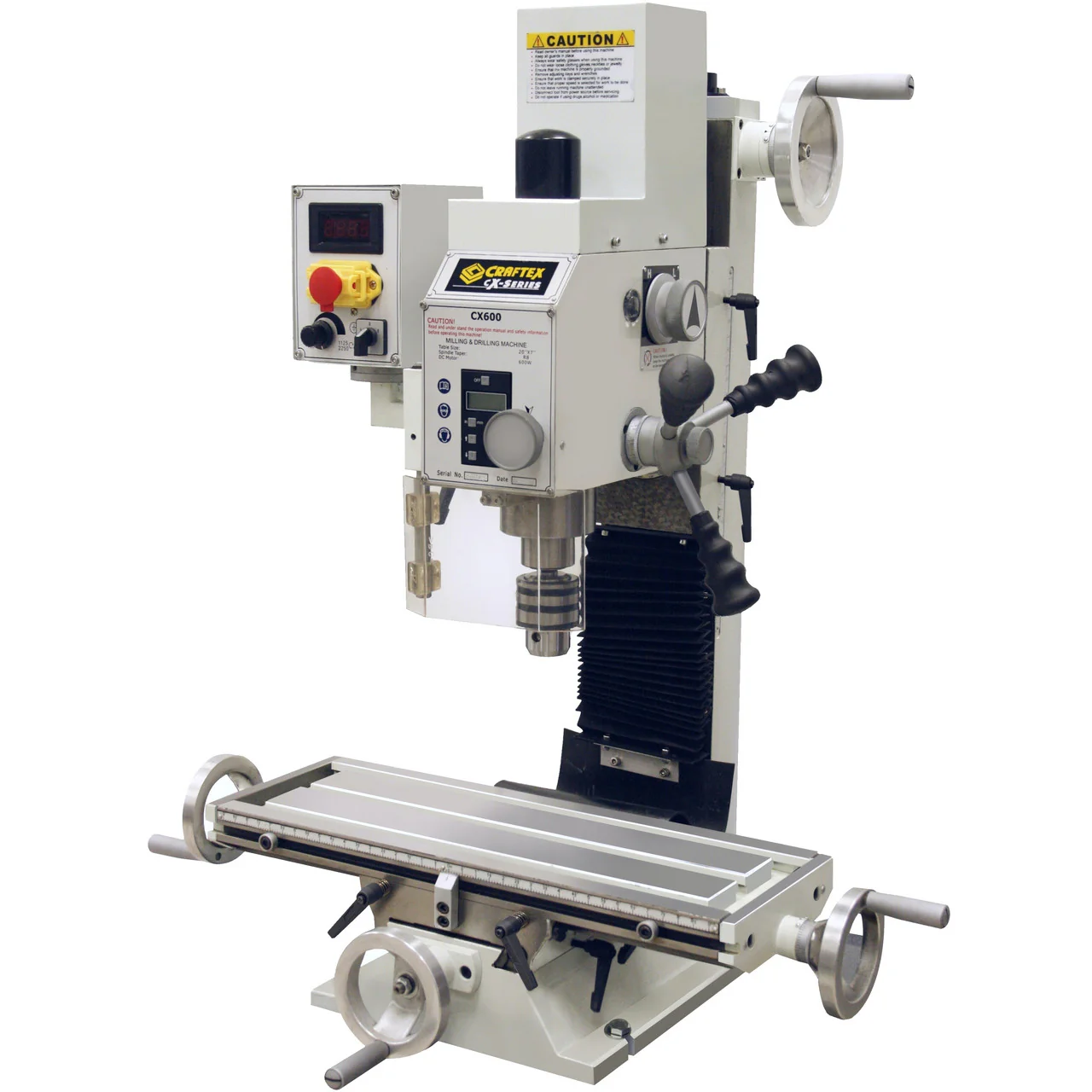

CX600

Mill Drill with R8 Taper and Digital Readout – Craftex CX-Series

While the CX600 measures in a bit smaller than its big brother, the CX601, the CX600 has almost all the same great features.
This machine features a powerful 3/4HP motor, variable speed with digital readout, a large precision ground table, R8 spindle and overall high quality construction.
The 7” x 20” precision ground table provides a large work space and the T-slots allow clamping the work-piece for an accurate and safe operation. Tasks such as angle drilling and horizontal slotting are made easy with the tilting head design and you can choose from 50 to 2250 RPM depending on you.

Other features of the CX600 are; gear head with powerful torque, precision manual and fine down-feed, positive locks for table, head and quill, easy reading scale, safety chip guard auto shut off and a digital spindle height gauge.

The CX600 comes with a drill chuck, a digital spindle height gauge, a drawbar, an R8 arbor, an oil bottle, six Allen keys, a slotted, and a Philips screw drivers, a user manual and a tool box.

The CX600 features an Optional Stand, model number CX600ST that can be bought separately. The CX600 features four mounting holes on its base which allows mounting the machine onto the stand.

Like all CX-Series machines, this unit features powder coated paint, sharp looking two tone colours and a full 3 year warranty.

SPECIFICATIONS

Motor: 3/4-HP, 110-V, Single Phase
Drilling Capacity: 1”
End Mill Capacity: 5/8”
Face Mill Capacity: 2-1/2”
Spindle Taper: R8
Spindle Stroke: 2”
Head Tilt: + - 90-degree (45-deg to right and 45-deg to left)
Number of Spindle Speeds: Variable
Range of Spindle Speeds: 50 – 2250 RPM
Working Surface of Table: 20” x 7”
Table Longitudinal Travel: 11”
Table Cross Travel: 7”
Machine Head Vertical Travel: 15”
Number of T-Slots: 3
T-Slot Size: 10mm
Overall Dimensions: 27” x 29” x 34”
Net Weight (approx): 113 Kg
Shipping Weight (approx): 135 Kg
Warranty: 3-Years
