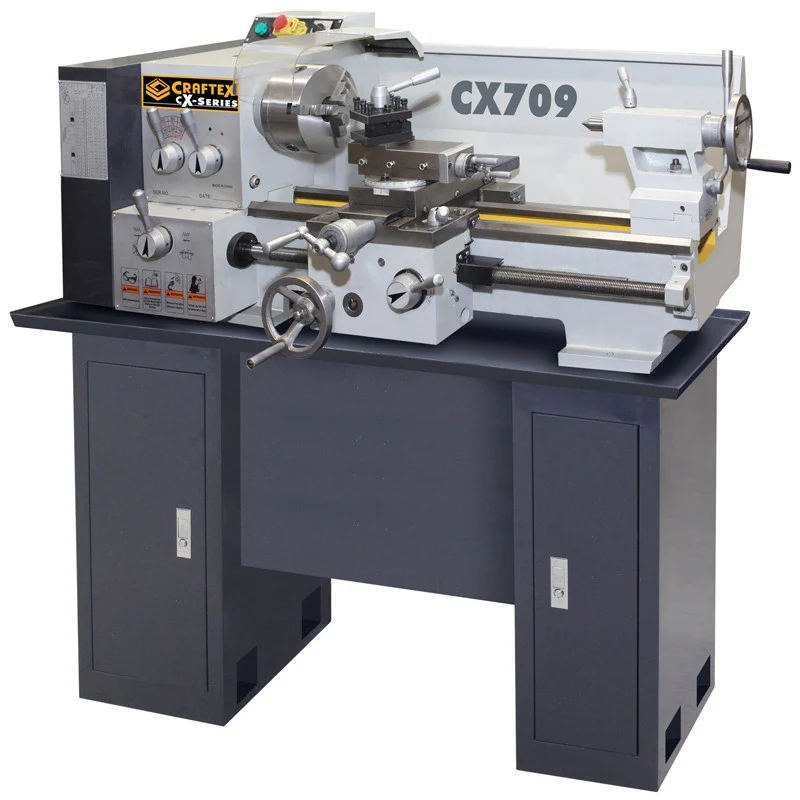

CX709

13" x 24" Metal Lathe with Stand - Craftex CX-Series

Featuring a 13" swing over bed, 24" distance between centers, and a 1.5HP powerful motor, this lathe can tackle a variety of jobs. The CX709 is precision-crafted for superior accuracy, durability, and long lasting dependable service. The combination of belt & gears settings allows user to choose from speeds ranging 65 – 1650 RPM and the four-way tool post makes operation fast and efficient.
Like all CX-Series machines, this unit features powder-coated paint, sharp two-tone colours, overall heavy-duty construction, and 3 year warranty.

SPECIFICATIONS

Motor Power: 1.5 HP, 110V, 11Amp
Max. Swing over bed: 13"
Max. Length of workpiece: 24"
Max. Swing carriage: 8.5"
Bed width: 6.2"
Spindle Bore: 1.5"
Spindle Taper: MT 5#
Spindle Speeds: 12 Steps
Spindle Speeds Range: 65—1650RPM
Max. Lateral Stroke over tool post: 6.2"
Max. Longitudinal stroke of tool post: 4"
Metric Thread kinds: 17 Kinds
Metric Thread range: 0.5-4 mm
Inch Thread kinds: 24 Kinds
Inch Thread range: 8-40 TPI
Longitudinal–feed range: 0.1-1.396mm/r
Cross–feed range: 0.025-0.34mm/r

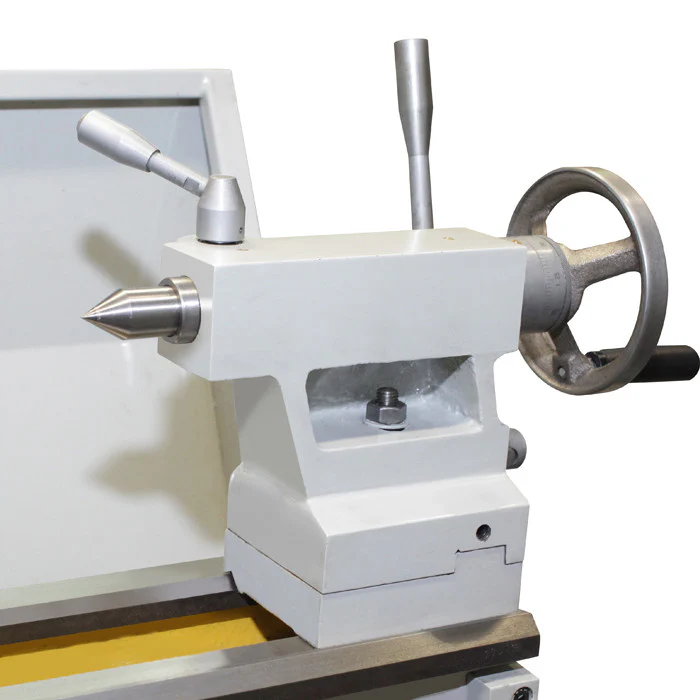

Tailstock Quill Diameter: 1.5"
Travel of Tail-stock Quill: 2.7"
Tail-stock Quill Taper: MT 3#
Net Weight: 240kg

Lathe comes with:

Steady Rest
Follow Rest
Face Plate
3 Jaw Chuck
4 Jaw Chuck
Stand
Splash Guard

Best Selling Metal Lathes

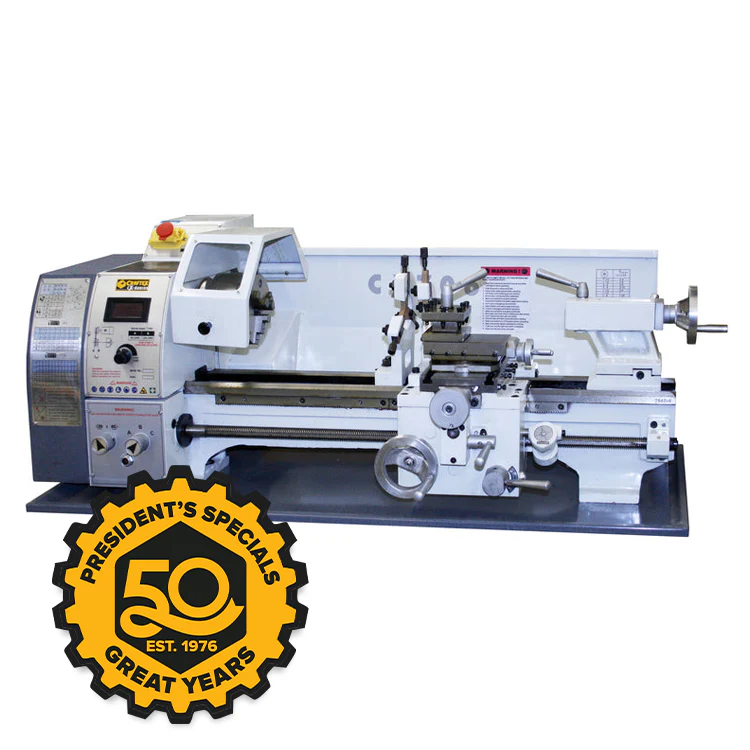

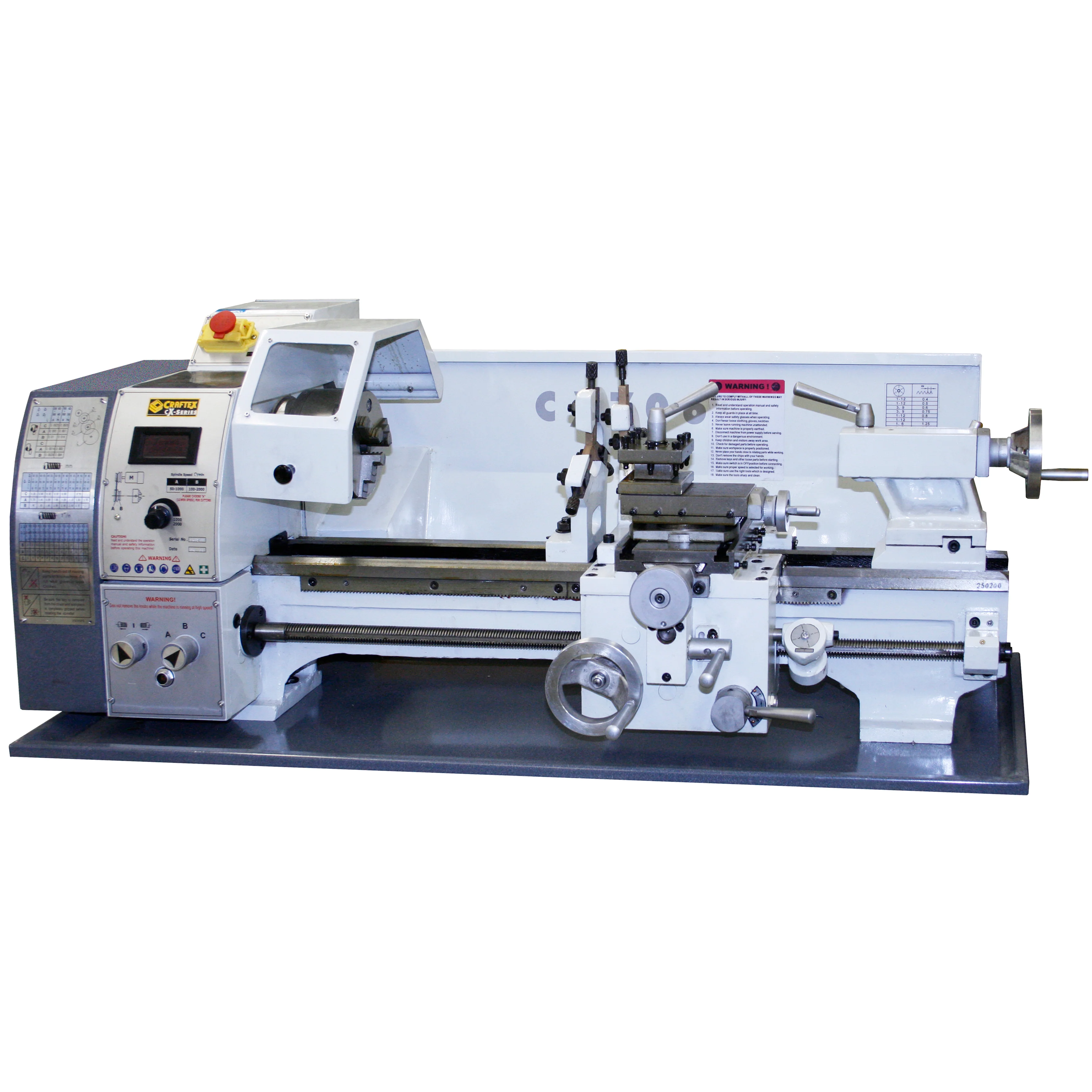

10" X 22" METAL LATHE 1HP

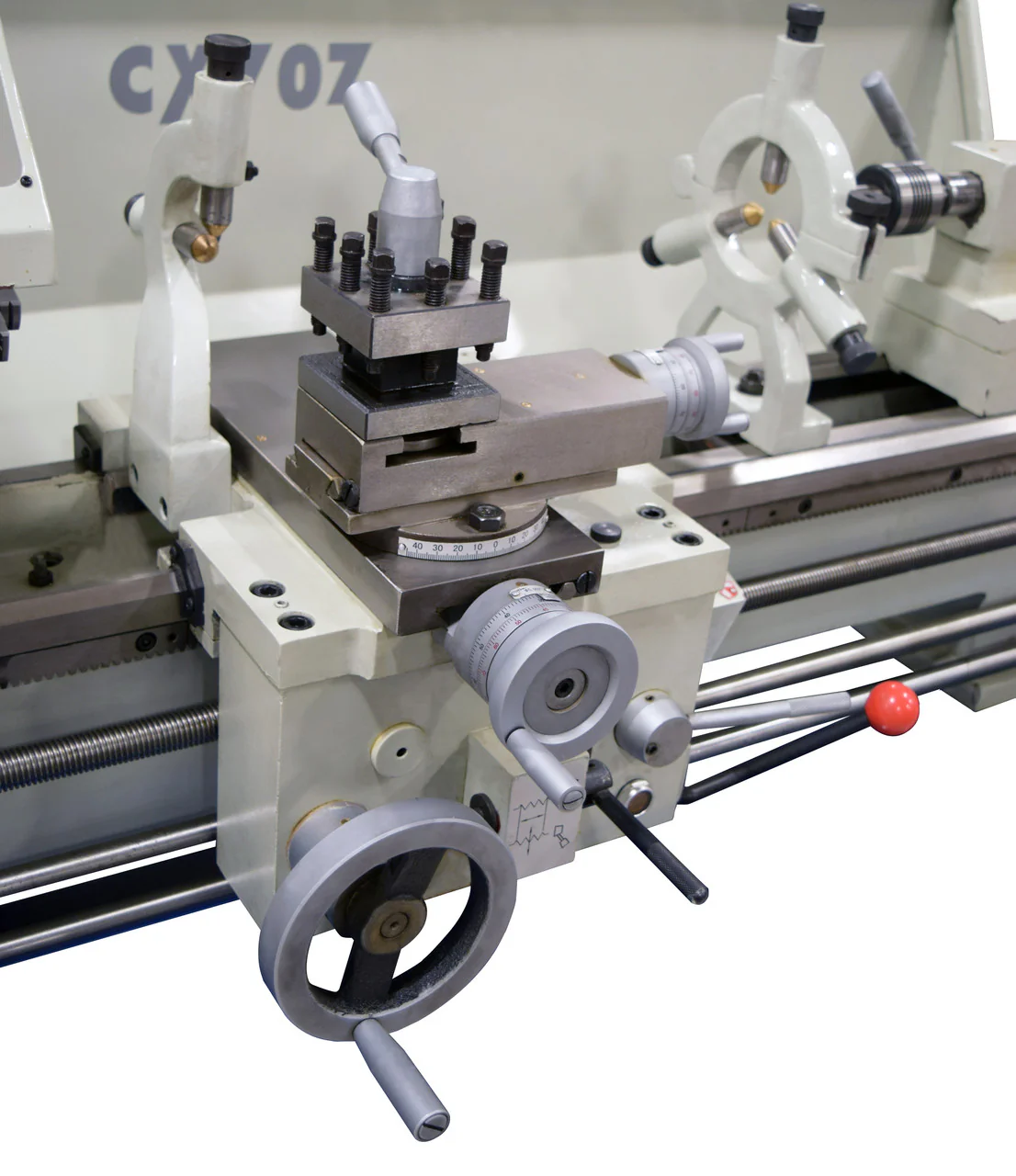

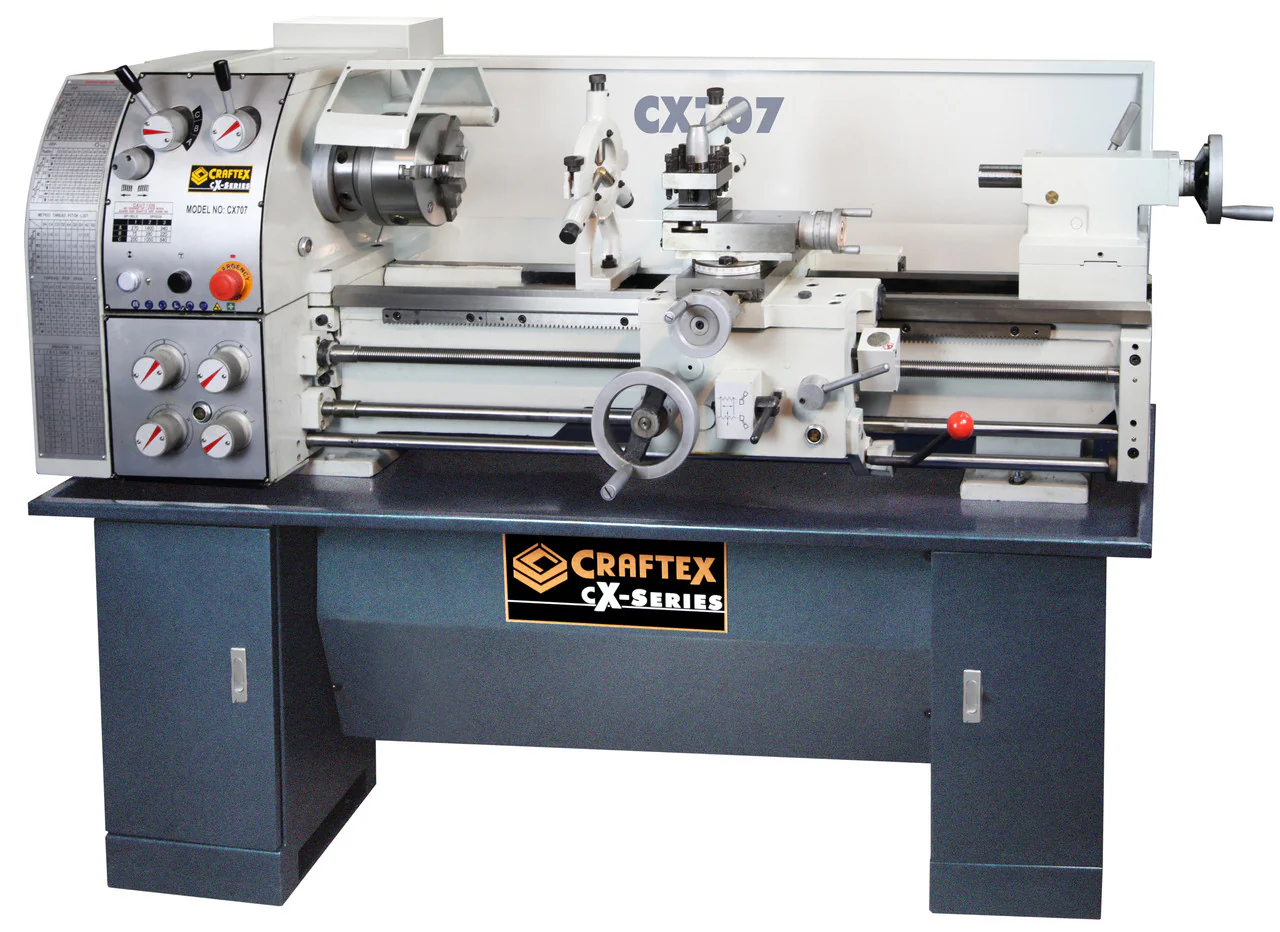

12" X 36" METALWORKING LATHE WITH STAND
